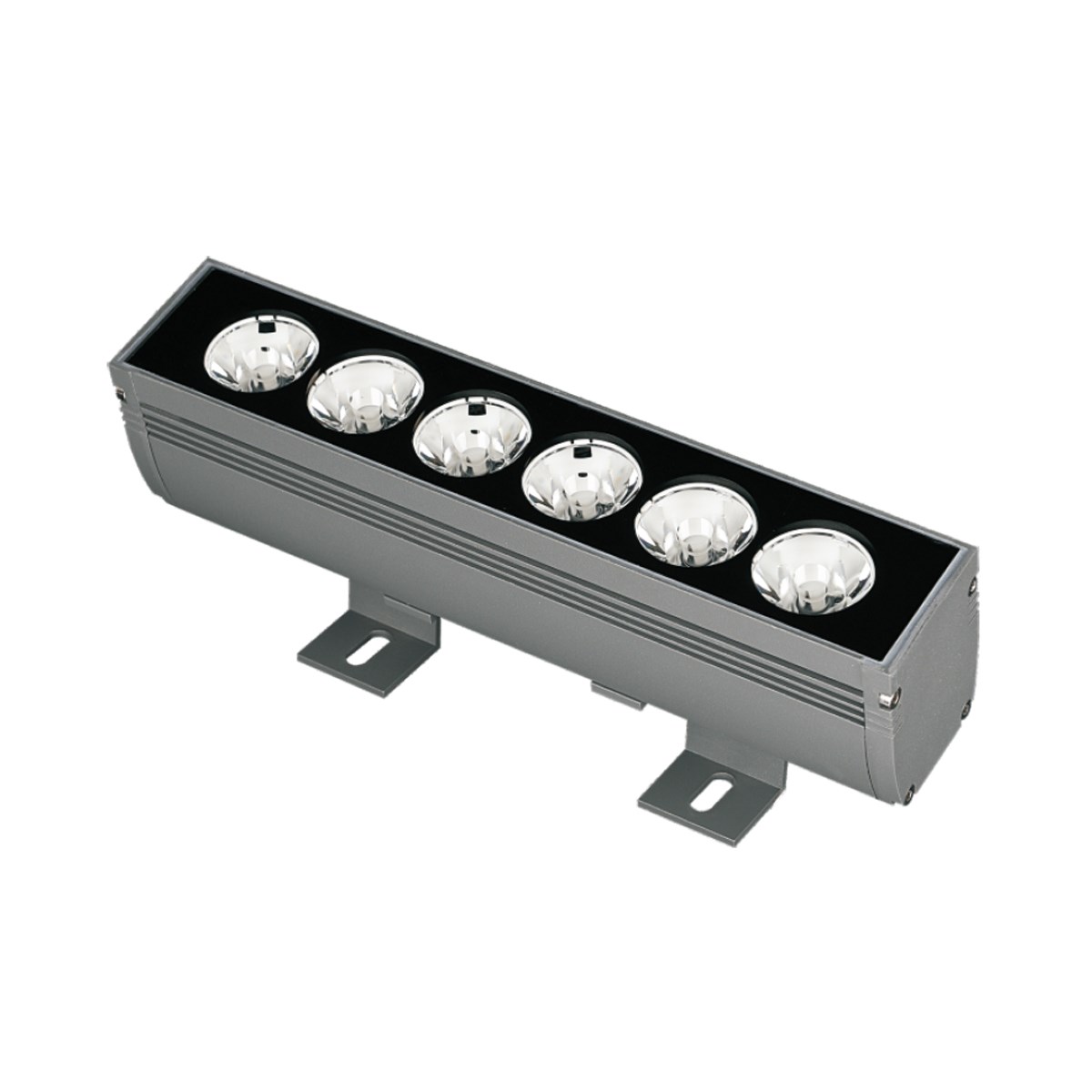

Surface Mounted Wall Washers

3+WW8502-18

Colour: Black    Grey

Surface Mounted Wallwasher

1. International standard aluminium radiator, die-cast aluminium,
unique surface treatment, beautiful appearance and better thermal performance.
Efficiency of the LED chip along with optimized heat sink keeps temperatures
below specified maximum even installed in insulated ceiling environment.


2. LED source use imported CREE COB, in this structural design with the use of
separate modular radiator can be more flexible in adaptation of different power
and different colour temperature. Color rendering index above 90 makes it ideal for the
most colourful displays. Dimmable option is available, by attaching a light controller
to the general circuit. Since the LED module can be replaced, after
a few years during maintenance its only necessary to open the face of the ring
and replace LED module and continue to use. This reduces the maintenance cost
to a great extent.


3.The use of high purity aluminum reflector, automatic moulding machine and professional
software simulation helps in precision optical design and spot uniformity.
By detachable ring structure,it satisfies different requirement of beam angle as you
only have to change the reflector.
Anodized aluminium coating concentrate the beam in the target area. Due to low
operating temperature of the LED module, reflective surface last longer than
older technologies do. Available multiple angles and finishes that must be ordered separately.

LED:CREE
Voltage:220-240V / 24V DC
Life Span:50000hrs
CCT:3000K / 4000K / 6000K
Beam Angle:
CRI:Ra ≥ 90
Lumens:1980
Power:18W
Tilt Rotation:120°
IP Rating:IP66
Material:Die-Cast Aluminum
Color Finish:Grey
Diffuser:Tempered Glass
Reflector:Chrome
Working Temperature:-20° ~ +60°
