Surface Mounted Wall Washers

3+WW713

Colour: Grey

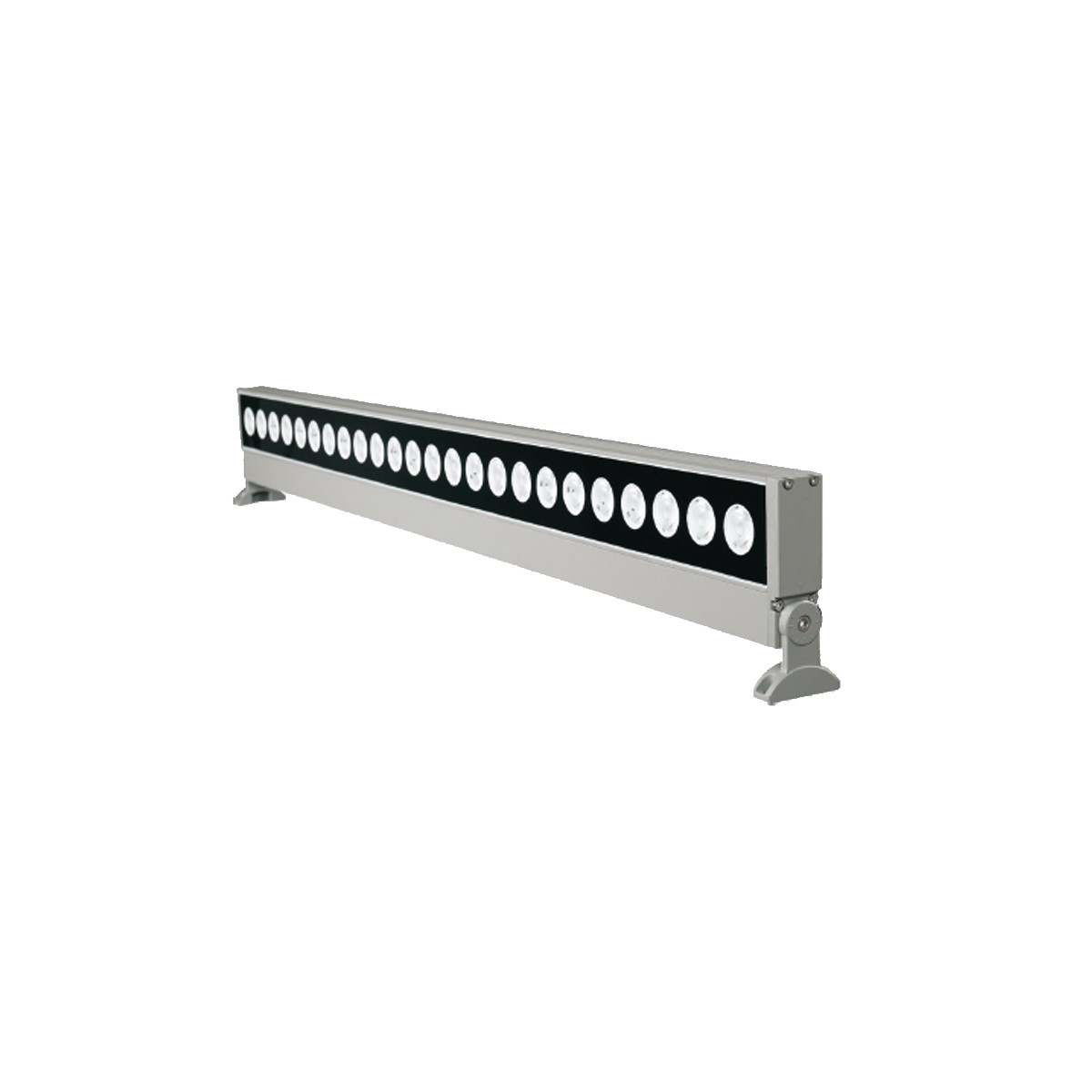

Surface Mounted Wallwasher

1. International standard aluminium radiator, die-cast aluminium,
unique surface treatment, beautiful appearance and better thermal performance.
Efficiency of the LED chip along with optimized heat sink keeps temperatures
below specified maximum even installed in insulated ceiling environment.


2. LED source use imported CREE COB, in this structural design with the use of
separate modular radiator can be more flexible in adaptation of different power
and different colour temperature. Color rendering index above 90 makes it ideal for the
most colourful displays. Dimmable option is available, by attaching a light controller
to the general circuit. Since the LED module can be replaced, after
a few years during maintenance its only necessary to open the face of the ring
and replace LED module and continue to use. This reduces the maintenance cost
to a great extent.


3.The use of high purity aluminum reflector, automatic moulding machine and professional
software simulation helps in precision optical design and spot uniformity.
By detachable ring structure,it satisfies different requirement of beam angle as you
only have to change the reflector.
Anodized aluminium coating concentrate the beam in the target area. Due to low
operating temperature of the LED module, reflective surface last longer than
older technologies do. Available multiple angles and finishes that must be ordered separately.

LED:SMD
Voltage:24V DC
Life Span:50000hrs
CCT:3000K - 5000K
Beam Angle:5° / 25° / 35° / 45° / 60°
CRI:Ra ≥ 90
Lumens:13200 / 21120
Power:120W / 192W
Tilt Rotation:Adjustable
IP Rating:IP65
Material:Die-Cast Aluminum
Color Finish:Grey
Diffuser:Tempered Glass
Working Temperature:-20° ~ +60°
