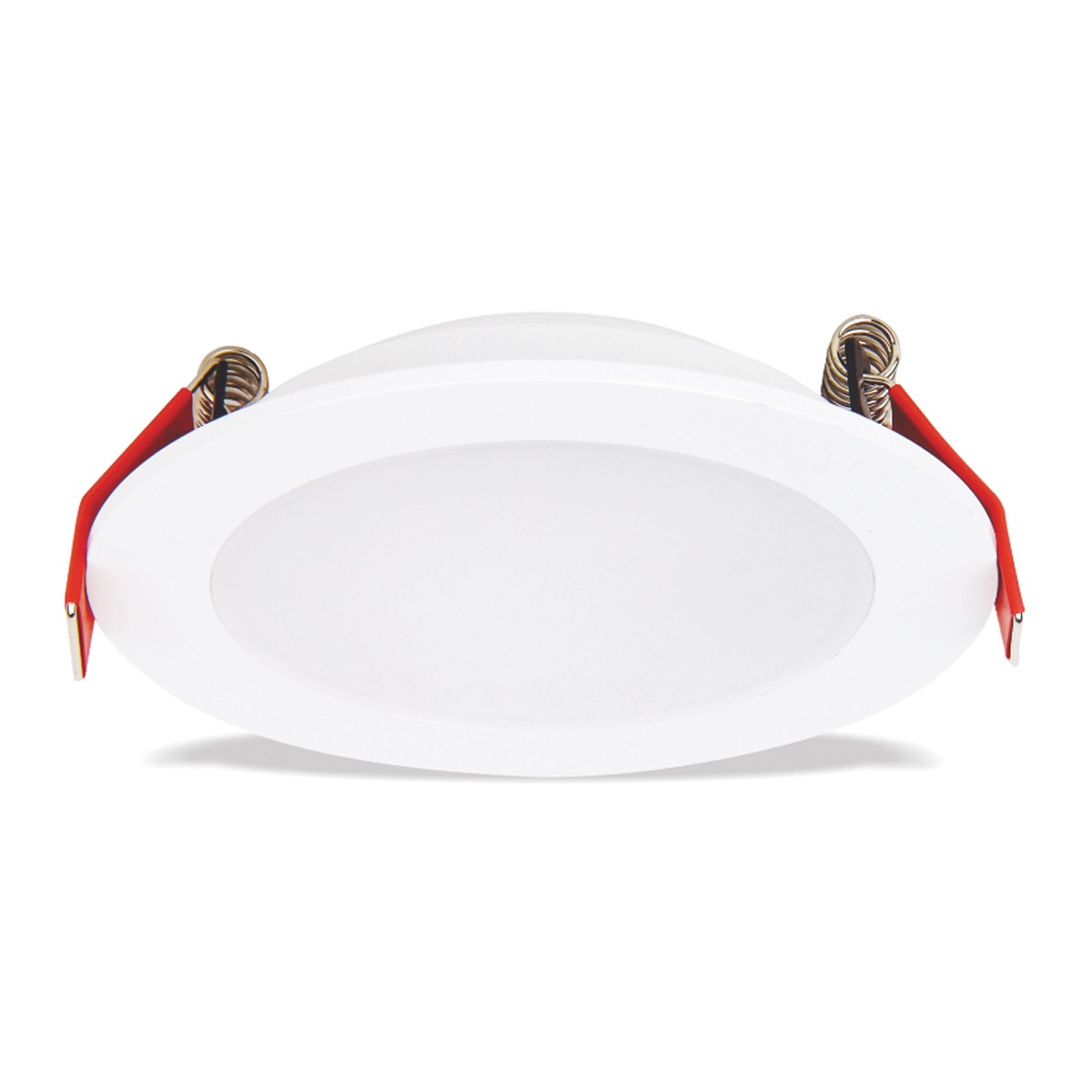

LED PMMA Downlight

3+5019

Ivory White    Gold    Silver

SAMSUNG LED Downlight

1. International standard aluminium radiator, die-cast aluminium,
unique surface treatment, beautiful appearance and better thermal performance.
Efficiency of the LED chip along with optimized heat sink keeps temperatures
below specified maximum even installed in insulated ceiling environment.


2. LED source use imported SAMSUNG SMD, in this structural design with the use of
separate modular radiator can be more flexible in adaptation of different power
and different colour temperature. Color rendering index above 90 makes it ideal for the
most colourful displays. Dimmable option is available, by attaching a light controller
to the general circuit. Since the LED module can be replaced, after
a few years during maintenance its only necessary to open the face of the ring
and replace LED module and continue to use. This reduces the maintenance cost
to a great extent.


3.The use of high purity aluminum reflector, automatic moulding machine and professional
software simulation helps in precision optical design and spot uniformity.
By detachable ring structure,it satisfies different requirement of beam angle as you
only have to change the reflector.
Anodized aluminium coating concentrate the beam in the target area. Due to low
operating temperature of the LED module, reflective surface last longer than
older technologies do. Available multiple angles and finishes that must be ordered separately.



4. The clear glass diffuser is one new kind of diffusing material extruded in 10000 grade
dustless purification workshop, which is made of imported optical raw materials with
rationally portioned dispersing agent imported from Japan.
This diffuser solves LED’s problem of glaring and low luminous efficiency very effectively
and available in various option such as CLEAR or FROSTED



5.Each size have circular flat shell, inner arc shell and square flat shell.
Simple atmosphere, fine surface electrostatic spray in the structural design
of the radiator using separate rotary cassette, and between the ring and
the heat sink surface a safety line, in order to ensures safe and reliable open face ring
subsequent replacement of the light source module

LED:SAMSUNG SMD
Voltage:220-240V
Life Span:50000hrs
CCT:3000K / 4000K / 5000K / 6000K
Beam Angle:90°
CRI:Ra ≥ 90
Lumens:1320
Power:12W
Tilt Rotation:Fixed
IP Rating:IP44 / IP54
Material:Die-Cast Aluminum
Color Finish:Ivory White
Diffuser:Opal PMMA
Reflector:Chrome
Working Temperature:-20° ~ +50°

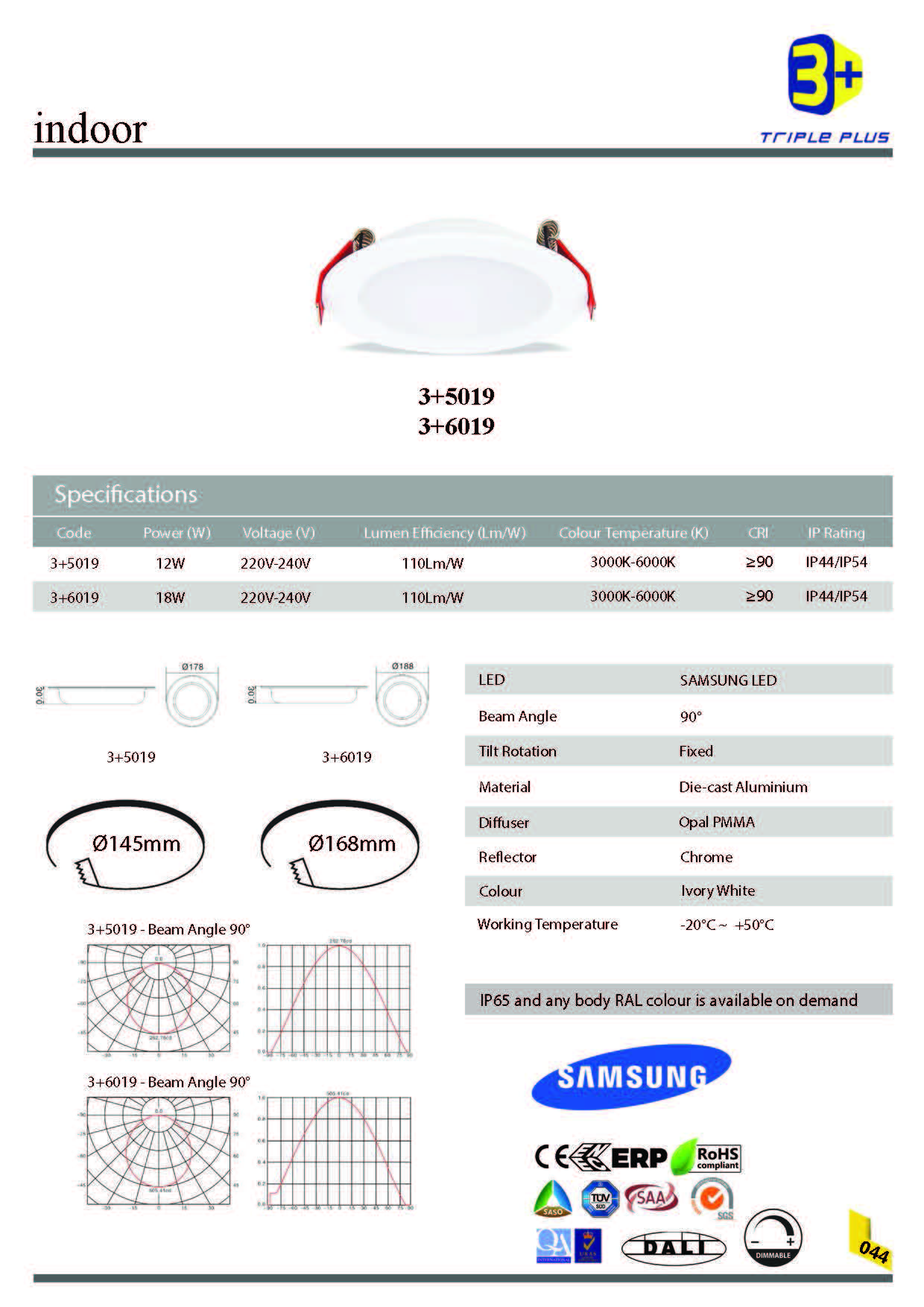

DATASHEET
